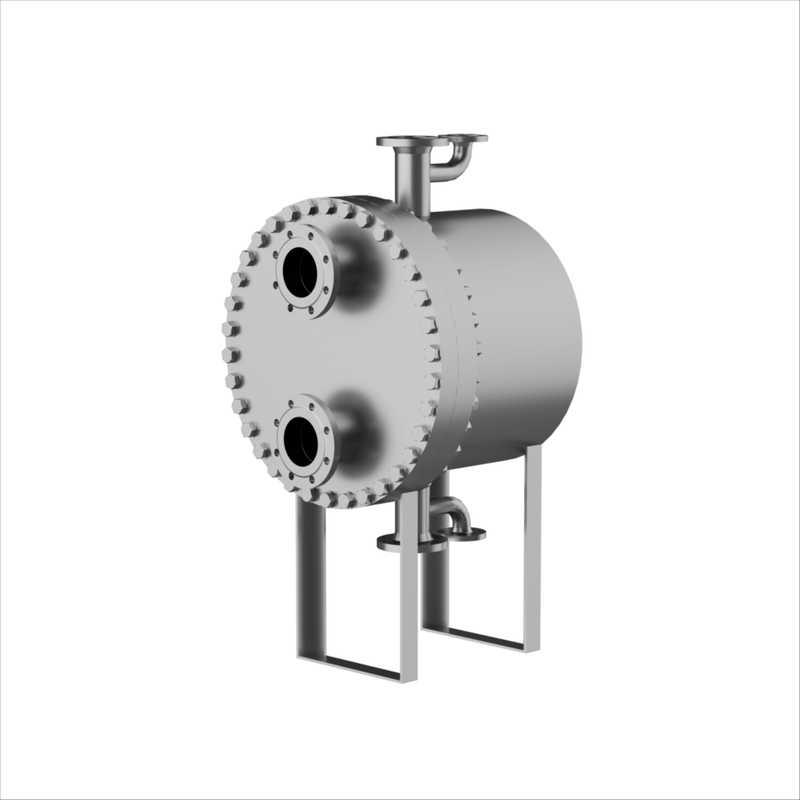

Product Introduction: Plate and Shell Heat Exchanger
I. Product Overview: The Preferred Choice for High-Efficiency Heat Transfer, Balancing Performance and Stability
The Plate and Shell Heat Exchanger is an innovative thermal device that integrates the high heat transfer efficiency of plate heat exchangers with the stable pressure-bearing advantages of shell-and-tube heat exchangers. Utilizing corrugated plates as the core heat transfer elements and featuring a shell strictly manufactured to pressure vessel standards, it achieves a perfect fusion of high-efficiency heat transfer and stable pressure resistance. The equipment possesses core characteristics such as a compact structure, excellent heat transfer efficiency, strong impact resistance, and a small footprint. It is widely applied in diverse industrial scenarios including petrochemicals, energy and power, metallurgy and mining, food and pharmaceuticals, and marine engineering. It can easily adapt to complex working conditions involving high temperatures, high pressures, and corrosive media, accurately completing efficient energy transfer between hot and cold fluids to help enterprises achieve the dual goals of energy conservation and production efficiency improvement.
II. Core Advantages: Technological Iteration and Upgrades, Forging Excellent Performance
High-Efficiency Heat Transfer & Significant Energy Savings:
The innovative corrugated plate design expands the heat transfer area while strongly enhancing fluid turbulence. The heat transfer coefficient is 30%-50% higher than that of traditional shell-and-tube exchangers, significantly improving heat utilization efficiency and effectively reducing energy consumption costs for enterprises.
Stable Pressure Resistance & Adaptation to Complex Conditions:
The shell is made of high-quality corrosion-resistant materials such as carbon steel and stainless steel, processed through rigorous pressure vessel manufacturing techniques. The pressure-bearing range can reach 1.6-10.0 MPa, and the applicable temperature range covers -40°C to 400°C, stably withstanding the tests of harsh industrial environments like high temperature, high pressure, and strong corrosion.
Compact Structure & Space Saving:
Compared to shell-and-tube exchangers of equivalent heat transfer power, the equipment volume is reduced by over 50% and the weight is reduced by 40%-60%. This significantly saves plant floor space, providing great convenience for equipment layout planning, installation, and later maintenance.
Anti-Fouling, Easy Cleaning & Hassle-Free Operation:
The smooth plate surface results in low fluid flow resistance, effectively reducing dirt accumulation. The modular structure design allows plates to be individually disassembled for cleaning or replacement, ensuring low maintenance costs and effectively extending the overall service life of the equipment.
Customized Service & Precise Needs Matching:
Relying on a professional R&D team, we can tailor core parameters such as plate material, corrugation pattern, and heat transfer area according to specific customer operating parameters (including medium characteristics, flow rate, temperature, pressure, etc.). We provide full-chain integrated services from scheme planning and manufacturing to installation and commissioning, ensuring seamless adaptation of the equipment to the customer's production system.
III. Application Fields: Comprehensive Industry Coverage, Empowering High-Quality Industrial Upgrades
With its excellent comprehensive performance, the Plate and Shell Heat Exchanger has become the core heat transfer equipment in numerous industrial fields. Typical application scenarios include:
Petrochemical Industry: Heat exchange in crude oil refining processes, temperature control of chemical reactors, solvent recovery, cooling of acid and alkali solutions, etc.
Energy & Power Industry: Generator set cooling systems, boiler feedwater preheating, industrial waste heat recovery projects, etc.
Metallurgy & Mining Industry: Metallurgical furnace cooling operations, mineral processing medium heat exchange, waste heat power generation system support, etc.
Food & Pharmaceutical Industry: Cooling after food sterilization, heat exchange for pharmaceutical intermediate purification, temperature control in sterile production processes, etc.
Marine Engineering: Cooling of ship power systems, heat exchange in seawater desalination plants, heating system support for offshore platforms, etc.
IV. Company Strength: Quality Builds the Foundation, Service Escorts the Whole Process
Having deeply cultivated the heat exchange equipment field for many years, we have assembled a professional R&D and design team, equipped with advanced production and manufacturing equipment, and built a comprehensive quality control system. All Plate and Shell Heat Exchangers use high-quality raw materials and are strictly manufactured in accordance with dual international and domestic standards such as GB150 (Pressure Vessels) and ASME, passing third-party authoritative agency inspections and certifications. Meanwhile, we provide 24/7 technical consulting, on-site installation guidance, regular maintenance and overhaul, and other full-life-cycle services to comprehensively ensure the stable operation of equipment and escort customer production and operation.
V. Contact Us: Customize Your Exclusive Heat Transfer Solution
If you have procurement needs for Plate and Shell Heat Exchangers or require customized heat transfer solutions tailored to your specific working conditions, please feel free to contact us anytime!
