Semi-Welded Plate Heat Exchanger: A Model of High Efficiency and the Preferred Choice for Severe Operating Conditions
I. Product Overview: A Heat Transfer Tool Combining High Efficiency and Corrosion Resistance

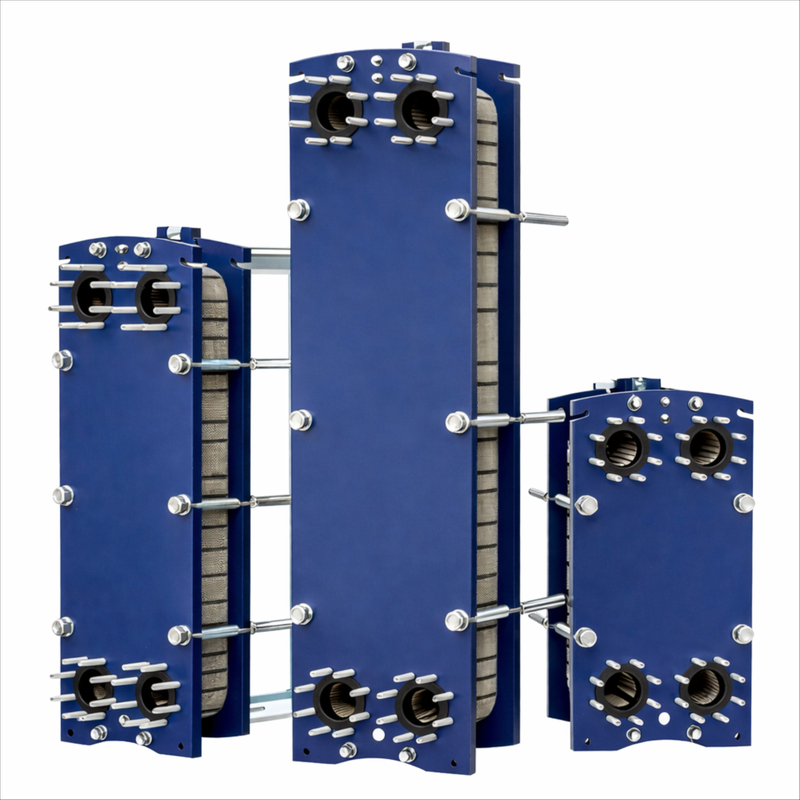

The Semi-Welded Plate Heat Exchanger is an innovative thermal equipment that successfully integrates the high heat transfer efficiency of plate heat exchangers with the stability and reliability of shell-and-tube heat exchangers. Utilizing a "Welded + Sealed" composite structure, the core heat transfer area achieves seamless connection through precision welding, while the non-core area is equipped with high-performance sealing components. This ensures superior heat transfer efficiency while significantly enhancing resistance to high temperatures, high pressures, and corrosive media. The product is widely used in industries such as chemical, petroleum, pharmaceutical, food & beverage, HVAC, metallurgy, and power generation, providing stable and efficient solutions for various complex heat transfer scenarios.
II. Core Advantages: Four Key Features Driving Industrial Upgrades
1. High-Efficiency Heat Transfer & Energy Conservation
Equipped with optimally designed corrugated plates, the equipment effectively expands the heat transfer area and improves the heat transfer coefficient. Its efficiency is 30%-50% higher than that of traditional shell-and-tube exchangers. While meeting equivalent heat exchange requirements, the equipment is smaller in size and lighter in weight, significantly reducing floor space costs and initial investment. Its high efficiency significantly lowers energy consumption, helping enterprises achieve energy conservation and cost reduction goals in line with green and low-carbon production trends.
2. Corrosion & Pressure Resistance, Stability & Durability
Designed for complex and harsh conditions, the core heat transfer area utilizes laser welding or argon arc welding processes, offering high welding strength and excellent sealing performance. It easily withstands temperatures up to 200°C, pressures up to 4.0 MPa, and corrosion from acids, alkalis, and organic solvents, greatly reducing the risk of leakage. The non-welded areas use imported high-performance seals with excellent anti-aging and wide temperature resistance properties, effectively extending equipment lifespan and ensuring long-term stable operation.
3. Flexible Adaptability & Multi-Condition Compatibility
We can flexibly adjust plate materials (304 SS, 316L SS, Titanium Alloy, etc.), corrugation patterns, flow channel structures, and heat transfer areas based on specific industry and operating requirements. Whether for wide temperature difference heat exchange, phase change heat transfer, or special scenarios involving media with particles, it provides a precise match, demonstrating strong adaptability.
4. Convenient Maintenance & Hassle-Free Operation
The equipment features a modular structural design that is compact and easy to disassemble. Seals in non-welded areas can be replaced quickly, effectively reducing maintenance difficulty and costs. The smooth plate surfaces are not prone to fouling, making daily cleaning efficient and convenient, reducing downtime, and improving production efficiency. Additionally, the equipment includes comprehensive temperature and pressure monitoring ports for real-time operational status tracking and safety assurance.
III. Applicable Industries & Typical Application Scenarios
Chemical Industry: Heat exchange of acid/alkali media, solvent recovery, constant temperature cooling systems for reactors.
Petroleum Industry: Crude oil heating, product oil cooling, lubricating oil temperature control.
Pharmaceutical Industry: Liquid concentration processes, sterilization heat exchange, process water temperature control.
Food & Beverage Industry: Juice sterilization and cooling, dairy pasteurization, beer fermentation temperature control.
HVAC Industry: Central air conditioning water system heat exchange, district heating projects.
Metallurgy Industry: Smelting process cooling, industrial waste heat recovery.
Power Industry: Generator set cooling systems, boiler feedwater heating processes.
IV. Product Assurance: Quality as the Foundation, Service as the Escort
Upholding a quality-first philosophy, all components of our Semi-Welded Plate Heat Exchangers undergo strict quality screening. From raw material procurement and production to finished product inspection, the entire process strictly follows the ISO9001 quality management system. Furthermore, we provide full-cycle support including preliminary condition surveys, customized solution design, installation and commissioning guidance, maintenance, and technical consultation, ensuring continuous, efficient, and stable operation to create greater value for our customers.
V. Contact Us: Customize Your Exclusive Heat Transfer Solution
If you have procurement needs for Semi-Welded Plate Heat Exchangers or require customized solutions for specific operating conditions, please feel free to contact us anytime!
